| BamX's profilation of this bike |
| It is a completely automatic ATV. This model differs markedly from the other charger models by its very high technical characteristics. |
|
General information |
|
Model name
|

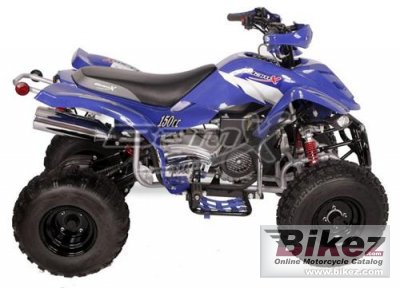

BamX BX150-S Charger |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 1799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
148.0 ccm (9.03 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
7.0 HP (5.1 kW)) |
|
Torque
|
8.3 Nm (0.8 kgf-m or 6.1 ft.lbs) @ 5500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
57.0 x 57.8 mm (2.2 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
19/7-8 |
|
Rear tire
|
18/10-8 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
116.1 kg (256.0 pounds) |
|
Power/weight ratio
|
0.0603 HP/kg |
|
Seat height
|
737 mm (29.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1016 mm (40.0 inches) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Black, Red, Pink, Blue |
|
Starter
|
Electric & kick |
