| BamX's profilation of this bike |
| These bikes are conveyer versions of the well-known Grand Prix motorcycles |
|
General information |
|
Model name
|

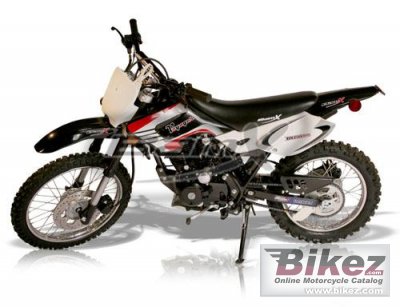

BamX BX150-DB Voyager |
|
Year
|
2010 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 1399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
149.0 ccm (9.09 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
9.5 HP (6.9 kW)) |
|
Torque
|
12.5 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 5500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
62.0 x 49.5 mm (2.4 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Dual Inverted Front Shocks |
|
Rear suspension
|
Swing Arm Mono Shock |
|
Front tire
|
3.00-19 |
|
Rear tire
|
3.50-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
102.1 kg (225.0 pounds) |
|
Power/weight ratio
|
0.0931 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
229 mm (9.0 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Oil capacity
|
1.30 litres (1.37 US quarts) |
|
Other specifications |
|
Color options
|
Black, red, blue |
|
Starter
|
Electric & kick |
|
Comments
|
5 Speed Manual w/clutch |
