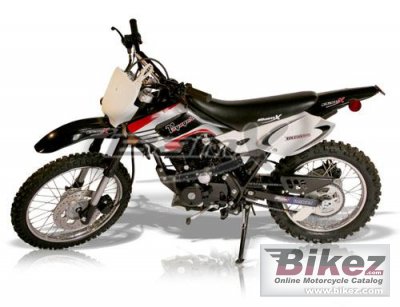

BamX BX150-DB Voyager 20092009 BamX BX150-DB Voyager specifications, pictures, reviews and rating |
| BamX's profilation of this bike |
| It is built to ride on the most extreme terrains. It is characterized by excellent maneuverability, acceleration efficiency and braking dynamics. These bikes are conveyer versions of the well-known Grand Prix motorcycles. |
| General information | |
|---|---|
| Model | BamX BX150-DB Voyager |
| Year of manufacture | 2009 |
| Type | Enduro / offroad |
| Price as new | US$ 1399. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 149.0 ccm (9.09 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 9.5 HP (6.9 kW)) |
| Torque | 12.5 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 5500 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Pressure/Splash |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual Inverted Front Shocks |
| Rear suspension | Swing Arm Mono Shock |
| Front tire | 3.00-19 |
| Rear tire | 3.50-16 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 102.1 kg (225.0 pounds) |
| Power/weight ratio | 0.0931 HP/kg |
| Seat height | 762 mm (30.0 inches) If adjustable, lowest setting. |
| Ground clearance | 229 mm (9.0 inches) |
| Wheelbase | 1295 mm (51.0 inches) |
| Fuel capacity | 5.00 litres (1.32 US gallons) |
| Oil capacity | 1.30 litres (1.37 US quarts) |
| Other specifications | |
| Starter | Electric & kick |
