| BamX's profilation of this bike |
| This model of pit bike is often raced with many communities all over the world. It is very manoeuvring and robust enough to be jumped. |
| General information |
|---|

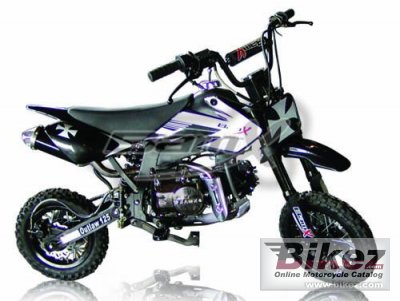

| Model: | BamX BX125 DB3 Outlaw |
| Year: | 2010 |
| Category: | Minibike, cross |
| Price as new: | US$ 1599. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.0 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 6.5 HP (4.7 kW)) |
| Torque: | 8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 550 RPM |
| Bore x stroke: | 52.4 x 57.0 mm (2.1 x 2.2 inches) |
| Fuel control: | Overhead Cams (OHC) |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Manual |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual Front Inverted Forks |
| Rear suspension: | Swing Arm, Mono Shock |
| Front tyre: | 2.50-10 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 90.7 kg (200.0 pounds) |
| Power/weight ratio: | 0.0716 HP/kg |
| Wheelbase: | 1041 mm (41.0 inches) |
| Fuel capacity: | 4.00 litres (1.06 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Kick |
| Comments: | Various wheel size options. |
