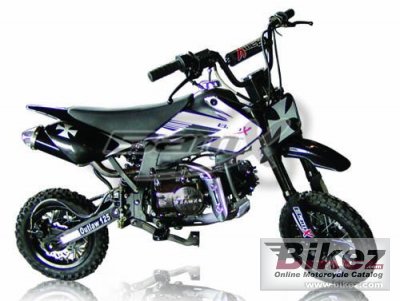

| BamX's profilation of this bike |
| This model of pit bike is often raced with many communities all over the world. It is very manoeuvring and robust enough to be jumped. It is designed for those who neglect any conventionalities of the modern society. |
|
General information |
|
Model name
|
BamX BX125-DB3 Outlaw |
|
Year of manufacture
|
2009 |
|
Type
|
Minibike, cross |
| Price as new | US$ 1599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
6.5 HP (4.7 kW)) |
|
Torque
|
8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 5500 RPM |
|
Bore x stroke
|
52.4 x 57.0 mm (2.1 x 2.2 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Dual Front Inverted Forks |
|
Rear suspension
|
Swing Arm, Mono Shock |
|
Front tire
|
2.50-10 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
56.7 kg (125.0 pounds) |
|
Power/weight ratio
|
0.1147 HP/kg |
|
Wheelbase
|
1041 mm (41.0 inches) |
|
Fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
|
Comments
|
Various wheel size options. |
