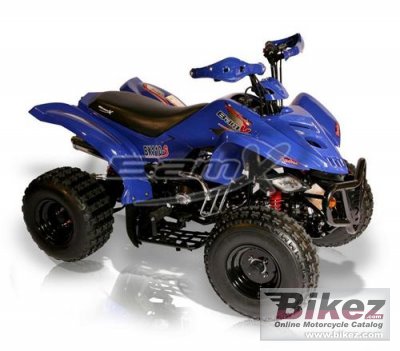

BamX BX110-S Tracker 20102010 BamX BX110-S Tracker specifications, pictures, reviews and rating |
| BamX's profilation of this bike |
| The original model of the tracker, which is presented in our on-line store, is characterized by the 4 stroke engine, a well supported axle and pretty good seals on its wheels. |
| General information | |
|---|---|
| Model | BamX BX110-S Tracker |
| Model year | 2010 |
| Category | ATV |
| Price as new | US$ 1499. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 107.0 ccm (6.53 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 5.2 HP (3.8 kW)) |
| Torque | 6.2 Nm (0.6 kgf-m or 4.6 ft.lbs) @ 5500 RPM |
| Compression | 9.1:1 |
| Bore x stroke | 50.0 x 53.5 mm (2.0 x 2.1 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Pressure/Splash |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Rear suspension | Swing Arm |
| Front tire | 18/7-8 |
| Rear tire | 18/10-8 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 256.0 kg (564.4 pounds) |
| Power/weight ratio | 0.0203 HP/kg |
| Seat height | 737 mm (29.0 inches) If adjustable, lowest setting. |
| Ground clearance | 102 mm (4.0 inches) |
| Wheelbase | 1016 mm (40.0 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Oil capacity | 0.90 litres (0.95 US quarts) |
| Other specifications | |
| Color options | Red, blue, black, pink |
| Starter | Electric |
| Comments | Semi-Automatic w/Reverse. |
