General information |
|
Motorcycle name
|

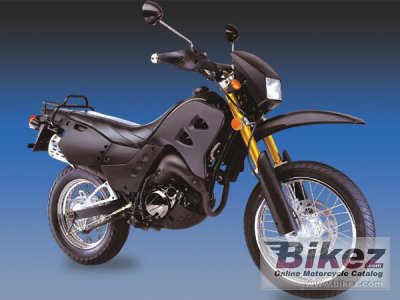

Azel Wolf 200 |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
200.0 ccm (12.20 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
15.0 HP (10.9 kW)) |
|
Torque
|
14.5 Nm (1.5 kgf-m or 10.7 ft.lbs) @ 6500 RPM |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
2.15-18 |
|
Rear tire
|
2.75-15 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
135.0 kg (297.6 pounds) |
|
Power/weight ratio
|
0.1111 HP/kg |
|
Overall height
|
1200 mm (47.2 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
