General information |
|
Model name
|

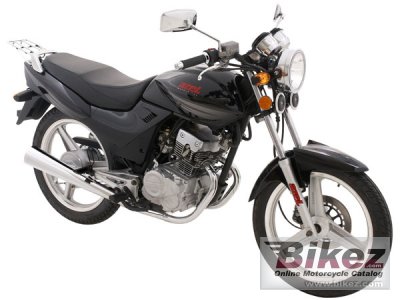

Azel Street Bike 125cc |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
11.0 HP (8.0 kW)) |
|
Torque
|
8.2 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 8500 RPM |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front tire
|
1.85-18 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
150.0 kg (330.7 pounds) |
|
Power/weight ratio
|
0.0733 HP/kg |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Also called Azel SB125cc |
