| Azel's profilation of this bike |
| Browse the city, leaving behind the traffic jams and go anywhere. |
| General moped information |
|---|

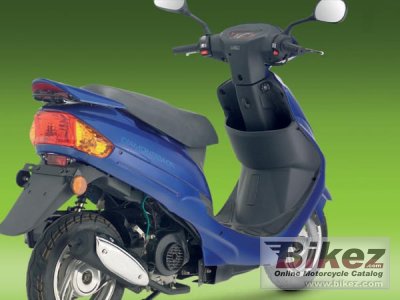

| Model | Azel Diamond Back 50 |
| Year | 2010 |
| Category | Scooter |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Torque | 2.9 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 7000 RPM |
| Fuel system | Carburettor |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Steel |
| Front tire | 3.00-10 |
| Rear tire | 3.00-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight | 84.0 kg (185.2 pounds) |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 1660 mm (65.4 inches) |
| Overall width | 680 mm (26.8 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Other specifications |
|---|
| Color options | Blue, red, silver, black. |
| Starter | Electric & kick |
| Comments | Azel Motorbike is a Spanish brand. |
