Azel Diamond Back 20092009 Azel Diamond Back specifications, pictures, reviews and rating |

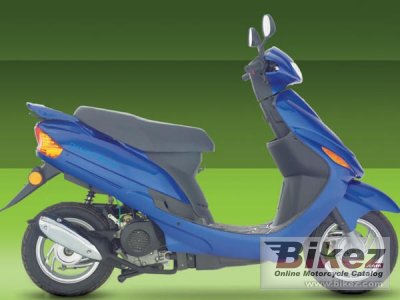

 2009 Azel Diamond Back. Picture credits - Azel. Submit more pictures.
|
| General moped information | |
|---|---|
| Motorcycle name | Azel Diamond Back |
| Year model | 2009 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.5 ccm (3.02 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 4.0 HP (2.9 kW)) |
| Torque | 2.9 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 7000 RPM |
| Fuel system | Carburettor |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.00-10 |
| Rear tire | 3.00-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 84.0 kg (185.2 pounds) |
| Power/weight ratio | 0.0476 HP/kg |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 1600 mm (63.0 inches) |
| Overall width | 600 mm (23.6 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Other specifications | |
| Color options | Blue, black, red, silver |
| Starter | Electric & kick |
