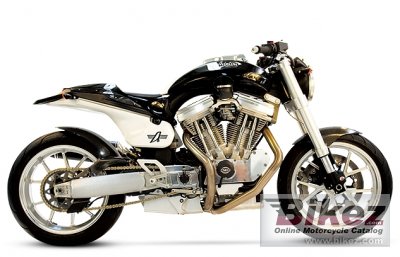

| Avinton's profilation of this bike |
| It seems indomitable, but you can ride it, run the engine, hear the harmonious roar of the S and S Twin 4-stroke engine of 1,640 cc, engage first gear ... Enjoy the balance, weight distribution, the air that flows to the Vortec placed on the air tank. |
|
General information |
|
Model
|
Avinton Collector Roadster |
|
Year of manufacture
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1645.0 ccm (100.38 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
S and S V-Twin at 45 degree |
|
Output
|
120.0 HP (87.6 kW)) @ 5750 RPM |
|
Torque
|
162.7 Nm (16.6 kgf-m or 120.0 ft.lbs) @ 4250 RPM |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
101.6 x 101.0 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Carburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Kevlar belt primary |
|
Exhaust system
|
2 in 1 Devil in stainless steel |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular with suspended engine, oil circuit integrated in the frame |
|
Rake (fork angle)
|
22.0° |
|
Trail
|
85 mm (3.3 inches) |
|
Front suspension
|
46mm adjustable Ceriani fork |
|
Rear suspension
|
Sachs shocks |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
10-spoke aluminium |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Weight incl. oil, gas, etc
|
193.0 kg (425.5 pounds) |
|
Power/weight ratio
|
0.6557 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1380 mm (54.3 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Color options
|
Black/white |
|
Instruments
|
Digital |
|
Comments
|
French brand |
