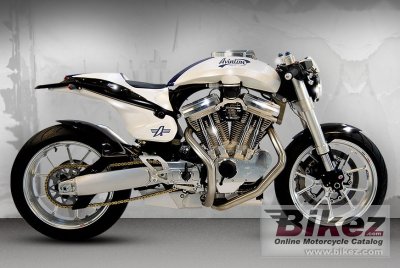

Avinton Collector Race 20132013 Avinton Collector Race specifications, pictures, reviews and rating |
| Avinton's profilation of this bike |
| Closer to route your feelings take off |
| General information | |
|---|---|
| Motorcycle name | Avinton Collector Race |
| Year | 2013 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1645.0 ccm (100.38 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | S and S V-Twin at 45 degree |
| Power | 120.0 HP (87.6 kW)) @ 5750 RPM |
| Torque | 162.7 Nm (16.6 kgf-m or 120.0 ft.lbs) @ 4250 RPM |
| Compression | 10.3:1 |
| Bore x stroke | 101.6 x 101.0 mm (4.0 x 4.0 inches) |
| Fuel system | Carburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically |
| Ignition | CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Driveline | Kevlar belt primary |
| Exhaust system | 2 in 1 Devil in stainless steel |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular with suspended engine, oil circuit integrated in the frame |
| Rake (fork angle) | 22.0° |
| Trail | 85 mm (3.3 inches) |
| Front suspension | 46mm adjustable Ceriani fork |
| Rear suspension | Sachs shocks |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Weight incl. oil, gas, etc | 195.0 kg (429.9 pounds) |
| Power/weight ratio | 0.6486 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Wheelbase | 1380 mm (54.3 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Color options | Red, white, black |
| Starter | Electric |
| Instruments | Digital |
| Comments | French made bike |
