| Atlas Honda's profilation of this bike |
| It is a stunning result of advanced Japanese technology and right up there as an outstanding performer representing all the qualities that make Honda motorcycles so special. |
|
General information |
|
Motorcycle name
|

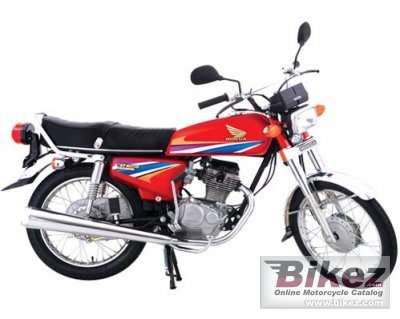

Atlas Honda CG 125 |
|
Year
|
2011 |
|
Category
|
Allround |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.1 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Roller chain final drive |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic Forke 103 mm Travel |
|
Rear suspension
|
Swing Arm 68 mm Travel |
|
Front tire
|
2.75-18 |
|
Rear tire
|
2.50-17 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
96.5 kg (212.7 pounds) |
|
Seat height
|
743 mm (29.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1017 mm (40.0 inches) |
|
Overall length
|
1911 mm (75.2 inches) |
|
Overall width
|
731 mm (28.8 inches) |
|
Ground clearance
|
137 mm (5.4 inches) |
|
Fuel capacity
|
9.20 litres (2.43 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
|
Electrical
|
12 Volt |
