ATK's profilation of this bike |
|
General information |
Model name
|

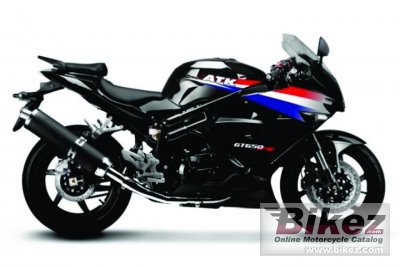

ATK GT650R |
Year model
|
2012 |
Type
|
Sport |
Price as new | US$ 6395. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
647.0 ccm (39.48 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
90 degree cylinder angle |
Effect
|
79.0 HP (57.7 kW)) @ 9250 RPM |
Torque
|
66.9 Nm (6.8 kgf-m or 49.3 ft.lbs) @ 7250 RPM |
Compression
|
11.6:1 |
Bore x stroke
|
81.5 x 62.0 mm (3.2 x 2.4 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
Chain 525 |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.0° |
Front suspension
|
Upside down Telescopic (Compression, Rebound damping adjustable) |
Rear suspension
|
Linkage Hydraulic Mono shock absorber, fully adjustable. |
Front tire
|
120/80-16 |
Rear tire
|
170/80-15 |
Front brakes
|
Double disc. Floating rotor, 2-piston |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc. Floating rotor, 2-piston |
Diameter
|
230 mm (9.1 inches) |
Wheels
|
Black |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
215.0 kg (474.0 pounds) |
Seat height
|
831 mm (32.7 inches) If adjustable, lowest setting. |
Overall height
|
1135 mm (44.7 inches) |
Overall length
|
2090 mm (82.3 inches) |
Overall width
|
701 mm (27.6 inches) |
Ground clearance
|
165 mm (6.5 inches) |
Wheelbase
|
1435 mm (56.5 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Other specifications |
Color options
|
Red |
Starter
|
Electric |
Instruments
|
Digital and analogue |
Comments
|
Windscreen |
