Arlen Ness Speedliner 20132013 Arlen Ness Speedliner specifications, pictures, reviews and rating |

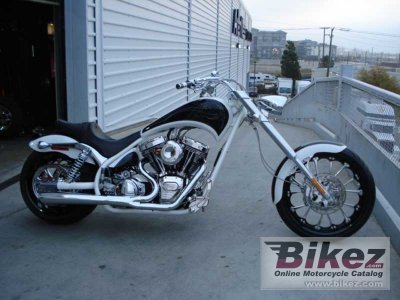

2013 Arlen Ness Speedliner. Image credits - Arlen Ness.
| Arlen Ness' profilation of this bike |
| Choose between a long or short rear fender. Base Speedliners, with a single solid color start at Dollars 44,995. Many upgrades, such as paint and graphics, additional powder coat(motor, wheels, swingarm tips, bars, etc), passenger set-ups, exotic seat covers, and more are also available. |
| General information | |
|---|---|
| Motorcycle name | Arlen Ness Speedliner |
| Year model | 2013 |
| Type | Custom / cruiser |
| Price as new | US$ 44995. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1851.9 ccm (113.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | S and S polished engine |
| Effect | 112.0 HP (81.8 kW)) |
| Torque | 168.1 Nm (17.1 kgf-m or 124.0 ft.lbs) |
| Compression | 10.1:1 |
| Bore x stroke | 101.6 x 114.3 mm (4.0 x 4.5 inches) |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Rivera ´Pro-Clutch´ |
| Driveline | Primary chain drive |
| Exhaust system | 2 into 1 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Ness Y2k frame |
| Rake (fork angle) | 42.0° |
| Front suspension | 63.5mm inverted front forks with Ness solid billet trees |
| Front tire | 3.50-23 |
| Rear tire | 10.5-18 |
| Front brakes | Single disc. Ness/PM 6-piston caliper with Ness 11´ floating rotors |
| Rear brakes | Single disc. Ness/PM 6-piston caliper with Ness 11´ floating rotors |
| Wheels | Avon tyres |
| Physical measures and capacities | |
| Fuel capacity | 18.93 litres (5.00 US gallons) |
| Other specifications | |
| Color options | Custom |
| Starter | Electric |
| Instruments | Digital |
| Light | Ness billet lighting |
| Comments | Many upgrades, eg., paint and graphics, additional powder coat(motor, wheels, swingarm tips, bars, etc), passenger set-ups, exotic seat covers, and more available. |
