| Arctic Cat's profilation of this bike |
| The new 700 cc, liquid cooled EFI gives added meaning to words “power” and “performance” with a single overhead cam and a single cylinder. As for the “H” in “H1” it stands for hemispherical-shaped heads. That simply means more efficient combustion resulting in better performance. |
|
General information |
|
Model
|

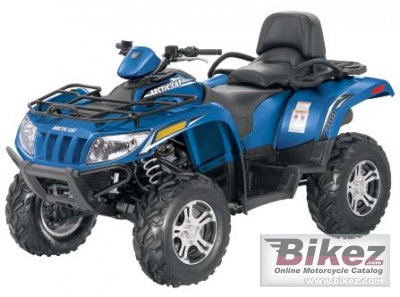

Arctic Cat TRV 700i GT |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
681.0 ccm (41.55 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Double A-Arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Aluminum Rims |
|
Seat
|
Removable Passenger Seat |
|
Physical measures and capacities |
|
Dry weight
|
346.5 kg (763.9 pounds) |
|
Overall length
|
2565 mm (101.0 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1473 mm (58.0 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
Viper Blue Metallic, Sunset Orange |
|
Starter
|
Electric |
|
Instruments
|
Digital Gauge |
|
Electrical
|
Alternator Capacity: 25.0 amps |
|
Carrying capacity
|
Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 35 lbs / 15.9 kg. Towing Capacity 1,050 lbs / 476.3 kg |
|
Comments
|
Power Steering, Tank Storage. |
