| Arctic Cat's profilation of this bike |
| With this ATV, you can double-up the excitement of the outdoors. The smooth handling of the TRV 700 H1 EFI Cruiser tames the trail as you tour the outdoors with a friend. |
| General information |
|---|

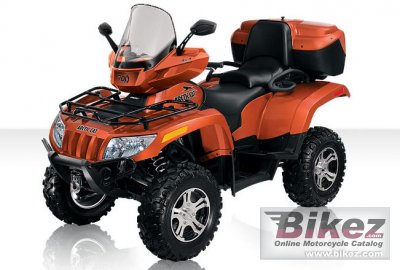

| Model: | Arctic Cat TRV 700 H1 EFI Cruiser |
| Year: | 2010 |
| Category: | ATV |
| Price as new: | US$ 10199. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 695.0 ccm (42.41 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tyre: | 25/8-12 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 354.7 kg (782.0 pounds) |
| Overall height: | 1219 mm (48.0 inches) |
| Overall length: | 2565 mm (101.0 inches) |
| Overall width: | 1206 mm (47.5 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 1473 mm (58.0 inches) |
| Fuel capacity: | 20.10 litres (5.31 gallons) |
| Other specifications |
|---|
| Color options: | Sunset orange |
| Starter: | Electric |
| Comments: | 2/4WD with reverse. High/low range. Diff lock. EBS. Winch. 2 seats. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| ATV parts | Sixity.com sells ATV parts with free shipping to the US. |
| Ask questions | Join the 10 Arctic Cat TRV 700 H1 EFI Cruiser discussion group or the general Arctic Cat discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Arctic Cat bike
|
Value for money for the 2010 Arctic Cat TRV 700 H1 EFI Cruiser:
 (50.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
