| Arctic Cat's profilation of this bike |
| When you feel to double-up your day tripping, there´s nothing more reliable than the TRV 700 H1 EFI. |
|
General information |
|
Motorcycle name
|

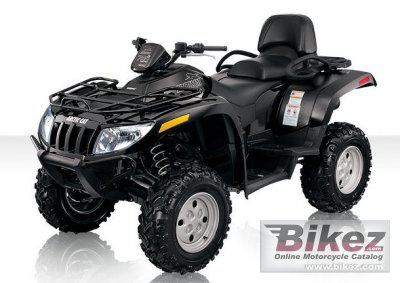

Arctic Cat TRV 700 H1 EFI |
|
Year
|
2010 |
|
Category
|
ATV |
| Price as new | US$ 9199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
695.0 ccm (42.41 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
328.4 kg (724.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2504 mm (98.6 inches) |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1473 mm (58.0 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Black metallic |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. High/low range. Diff lock. EBS. 2 seats. |
