| General information |
|---|

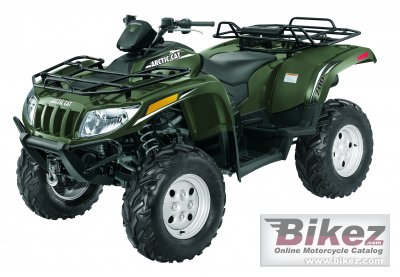

| Model | Arctic Cat TRV 700 Diesel EFT |
| Year | 2012 |
| Category | ATV |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 686.0 ccm (41.86 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | Diesel engine |
| Bore x stroke | 75.0 x 75.0 mm (3.0 x 3.0 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Driveline | On-the-fly 2wd/4wd W/diff Lock |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities |
|---|
| Dry weight | 382.8 kg (844.0 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2362 mm (93.0 inches) |
| Overall width | 1207 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications |
|---|
| Color options | Green |
| Starter | Electric |
| Instruments | Digital |
| Carrying capacity | Front And Rear Speedracks |
