Arctic Cat's profilation of this bike |
The new 545, liquid cooled (EFI) gives added meaning to words “power” and “performance” with a single overhead cam and a single cylinder. |
General information |
Motorcycle name
|

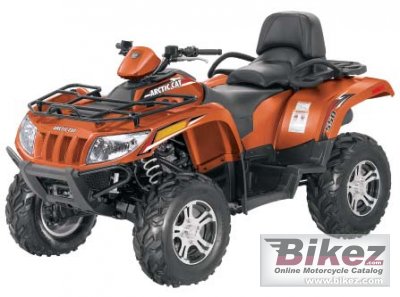

Arctic Cat TRV 550i GT |
Year model
|
2012 |
Type
|
ATV |
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
545.0 ccm (33.26 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Bore x stroke
|
92.0 x 82.0 mm (3.6 x 3.2 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
On-the-fly 2wd/4wd W/diff Lock |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel |
Front suspension
|
Double A-Arm |
Front wheel travel
|
254 mm (10.0 inches) |
Rear suspension
|
Double A-Arm |
Rear wheel travel
|
254 mm (10.0 inches) |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Single disc. Hydraulic |
Rear brakes
|
Single disc. Hydraulic |
Wheels
|
Aluminum Rims |
Seat
|
Removable Passenger Seat |
Physical measures and capacities |
Dry weight
|
353.0 kg (778.2 pounds) |
Overall height
|
1397 mm (55.0 inches) |
Overall length
|
2565 mm (101.0 inches) |
Overall width
|
1206 mm (47.5 inches) |
Ground clearance
|
279 mm (11.0 inches) |
Wheelbase
|
1473 mm (58.0 inches) |
Fuel capacity
|
20.10 litres (5.31 US gallons) |
Other specifications |
Color options
|
Viper Blue Metallic, Sunset Orange |
Starter
|
Electric |
Instruments
|
Digital |
Electrical
|
25.0 amps alternator |
Carrying capacity
|
Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 35 lbs / 15.9 kg. Towing Capacity 1,050 lbs / 476.3 kg |
Comments
|
Power Steering.
|
