| Arctic Cat's profilation of this bike |
| The incredible 3-in-1 capability allows you to remove the passenger seat and replace it with either a large, optional rear rack or optional heavy-duty cargo box. It’s one more way to make this trek as fun and versatile as it is memorable. |
|
General information |
|
Model name
|

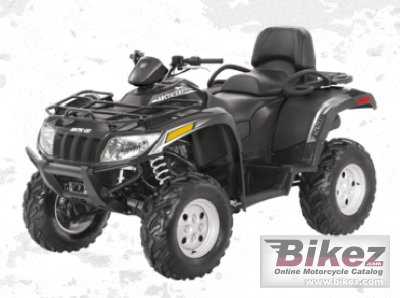

Arctic Cat TRV 550i Cruiser |
|
Model year
|
2012 |
|
Category
|
ATV |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
545.0 ccm (33.26 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
92.0 x 82.0 mm (3.6 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
On-the-fly 2wd/4wd W/diff Lock |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Wheels
|
Aluminum Rims |
|
Physical measures and capacities |
|
Dry weight
|
353.0 kg (778.2 pounds) |
|
Overall height
|
1397 mm (55.0 inches) |
|
Overall length
|
2565 mm (101.0 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1473 mm (58.0 inches) |
|
Fuel capacity
|
20.10 litres (5.31 US gallons) |
|
Other specifications |
|
Color options
|
Tungsten Metallic, Arctic Green Metallic |
|
Starter
|
Electric |
|
Electrical
|
25.0 amps alternator |
|
Carrying capacity
|
Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 35 lbs / 15.9 kg. Towing Capacity 1,050 lbs / 476.3 kg |
|
Comments
|
Power Steering, Winch, Touring Case, Hand Warmers, 2-Piece Fairing, Windscreen.
|
