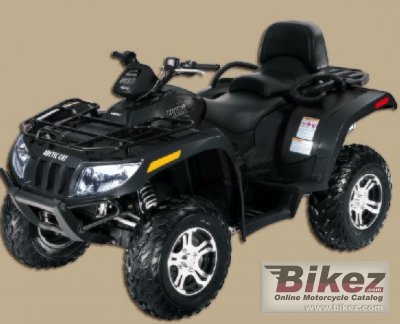

Arctic Cat TRV 550 H1 EFI LE 20092009 Arctic Cat TRV 550 H1 EFI LE specifications, pictures, reviews and rating |
| Arctic Cat's profilation of this bike |
| When you buy an Arctic Cat “TRV”, that´s like us giving you one machine, and you getting three. Quite a deal. It starts with a longer wheelbase that allows room for a passenger seat. That is one machine. Got work to do? Take off the seat and add heavy-duty cargo box. That´s two. Wanna hunt? Add one of our SpeedRack systems and tie your trophy and gear down. |
| General information | |
|---|---|
| Motorcycle name | Arctic Cat TRV 550 H1 EFI LE |
| Model year | 2009 |
| Category | ATV |
| Price as new | US$ 8999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 545.0 ccm (33.26 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 98.0 x 82.0 mm (3.9 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 338.4 kg (746.0 pounds) |
| Overall height | 1278 mm (50.3 inches) |
| Overall length | 2504 mm (98.6 inches) |
| Overall width | 1207 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 20.81 litres (5.50 US gallons) |
| Other specifications | |
| Color options | Green, olive, red |
| Starter | Electric |
| Comments | 4x4. Automatic CVT with EBS, Hi/Lo range and Reverse |
