Arctic Cat's profilation of this bike |
Consider this a value-priced pleasure cruise. Especially when you´ve got the 3-in-1 versatility of a removable passenger set, a heavy-duty cargo box or optional rear rack. |
General information |
---|

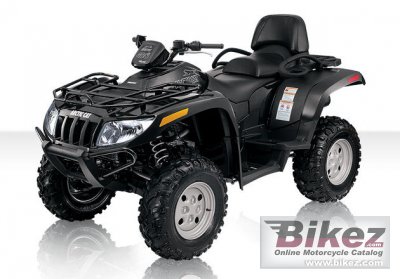

Model | Arctic Cat TRV 400 H1 |
Year | 2010 |
Category | ATV |
Price as new | US$ 7299. MSRP depends on country, taxes, accessories, etc. |
Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
---|
Displacement | 366.0 ccm (22.33 cubic inches) |
Engine type | Single cylinder, four-stroke |
Bore x stroke | 81.0 x 71.2 mm (3.2 x 2.8 inches) |
Valves per cylinder | 4 |
Fuel system | Carburettor |
Fuel control | Single Overhead Cams (SOHC) |
Cooling system | Oil & air |
Gearbox | Automatic |
Transmission type | Belt (final drive) |
Chassis, suspension, brakes and wheels |
---|
Front suspension | Double A-Arm |
Front wheel travel | 178 mm (7.0 inches) |
Rear suspension | Double A-Arm |
Rear wheel travel | 178 mm (7.0 inches) |
Front tire | 25/8-12 |
Rear tire | 25/10-12 |
Front brakes | Single disc. Hydraulic |
Rear brakes | Single disc. Hydraulic |
Physical measures and capacities |
---|
Dry weight | 315.7 kg (696.0 pounds) |
Overall height | 780 mm (30.7 inches) |
Overall length | 2504 mm (98.6 inches) |
Overall width | 1206 mm (47.5 inches) |
Ground clearance | 279 mm (11.0 inches) |
Wheelbase | 1473 mm (58.0 inches) |
Fuel capacity | 20.00 litres (5.28 US gallons) |
Other specifications |
---|
Color options | Black |
Starter | Electric |
Comments | 2/4WD with reverse. EBS. High/low range. Diff-lock. 2 seats. |
Update specs | Report missing specs or required updates. |
Further information |
---|
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 10 Arctic Cat TRV 400 H1 discussion group or the general Arctic Cat discussion group. |
Related bikes | List related bikes for comparison of specs. |
|
Rating sample for this Arctic Cat bike
|
Fun-factor for the 2010 Arctic Cat TRV 400 H1:

(76.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
