| Arctic Cat's profilation of this bike |
| Designed to give you the best tandem riding experience of your life. And all the features make this an ATV that will inspire passengers to line up to get a ride. |
| General information |
|---|

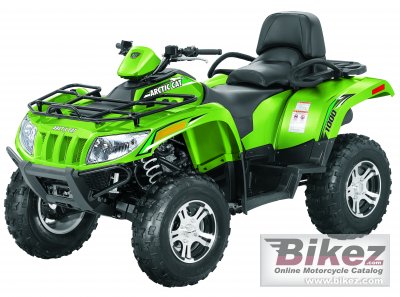

| Model: | Arctic Cat TRV 1000i GT |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 951.00 ccm (58.03 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 1000 H2 EFI Engine |
| Bore x stroke: | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | On-the-fly 2wd/4wd W/diff Lock |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tyre: | 25/8-12 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Wheels: | Aluminum rims |
| Seat: | 2-person seat |
| Physical measures and capacities |
|---|
| Dry weight: | 355.0 kg (782.6 pounds) |
| Overall height: | 1,397 mm (55.0 inches) |
| Overall length: | 2,565 mm (101.0 inches) |
| Overall width: | 1,206 mm (47.5 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 1,473 mm (58.0 inches) |
| Fuel capacity: | 20.00 litres (5.28 gallons) |
| Other specifications |
|---|
| Color options: | Arctic Green Metallic |
| Starter: | Electric |
| Instruments: | Digital/analogue |
| Electrical: | Alternator 25.0 amps |
| Carrying capacity: | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 35 lbs / 15.9 kg. Towing Capacity 1,050 lbs / 476.3 kg |
| Comments: | Power Steering. Windscreen |
