| Arctic Cat's profilation of this bike |
| If there is a royal court of 2-ups. the TRV 1000 H2 EFI Cruiser is the king. The sturdy Ride-In suspension is race inspired custom made for taking the trail in tandem. |
| General information |
|---|

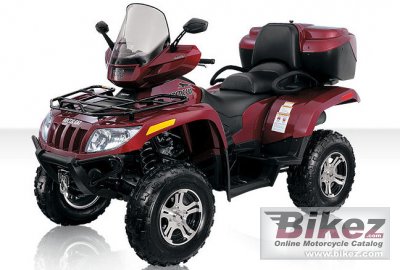

| Model: | Arctic Cat TRV 1000 H2 EFI Cruiser |
| Year: | 2010 |
| Category: | ATV |
| Price as new: | US$ 12699. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 951.0 ccm (58.03 cubic inches) |
| Engine type: | V2, four-stroke |
| Bore x stroke: | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Valves per cylinder: | 4 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tire: | 25/8-12 |
| Rear tire: | 25/10-12 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 362.0 kg (798.1 pounds) |
| Overall height: | 1397 mm (55.0 inches) |
| Overall length: | 2565 mm (101.0 inches) |
| Overall width: | 1206 mm (47.5 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 1473 mm (58.0 inches) |
| Fuel capacity: | 20.10 litres (5.31 US gallons) |
| Other specifications |
|---|
| Color options: | Green metallic, red metallic |
| Starter: | Electric |
| Comments: | 2/4WD with reverse. High/low range. Diff lock. Winch. 2 seats. |
