| Arctic Cat's profilation of this bike |
| The rumble that you hear in the distance is fading. It´s every ATV you´ve left in the dust. |
|
General information |
|
Motorcycle name
|

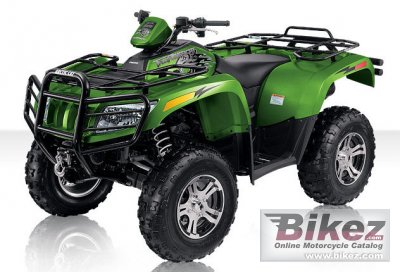

Arctic Cat Thundercat 1000 H2 LE |
|
Year of manufacture
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 11699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
951.0 ccm (58.03 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Bore x stroke
|
92.0 x 71.6 mm (3.6 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
352.0 kg (776.0 pounds) |
|
Overall length
|
2154 mm (84.8 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Wheelbase
|
1334 mm (52.5 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Green metallic |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. High/low range. Diff lock. |
