| Arctic Cat's profilation of this bike |
| It is called Thundercat for a reason. Every ounce of its power is at your command. |
| General information |
|---|

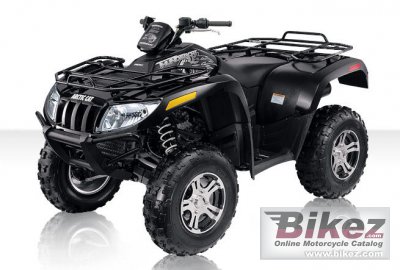

| Model | Arctic Cat Thundercat 1000 H2 |
| Year | 2010 |
| Category | ATV |
| Price as new | US$ 11299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 951.0 ccm (58.03 cubic inches) |
| Engine type | V2, four-stroke |
| Bore x stroke | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 324.8 kg (716.0 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2154 mm (84.8 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 133 mm (5.2 inches) |
| Wheelbase | 1334 mm (52.5 inches) |
| Fuel capacity | 21.57 litres (5.70 US gallons) |
| Other specifications |
|---|
| Color options | Black metallic |
| Starter | Electric |
| Comments | 2/4WD with reverse. Hi/lo range. Diff lock. |
