| General information |
|---|

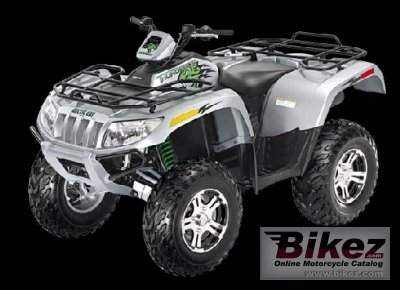

| Model | Arctic Cat ThunderCat 1000 H2 |
| Year | 2009 |
| Category | ATV |
| Price as new | US$ 11199. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 951.0 ccm (58.03 cubic inches) |
| Engine type | V2, four-stroke |
| Bore x stroke | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Double A-arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Double A-arm |
| Rear brakes | Single disc. Double A-arm |
| Physical measures and capacities |
|---|
| Dry weight | 324.8 kg (716.0 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2154 mm (84.8 inches) |
| Overall width | 1207 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1334 mm (52.5 inches) |
| Fuel capacity | 24.60 litres (6.50 US gallons) |
| Other specifications |
|---|
| Color options | Silver metallic |
| Starter | Electric |
| Comments | 2/4WD drive with reverse. |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Arctic Cat ThunderCat 1000 H2 discussion group or the general Arctic Cat discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Arctic Cat bike
|
Reliability for the 2009 Arctic Cat ThunderCat 1000 H2:
 (65.0 out of 100)
