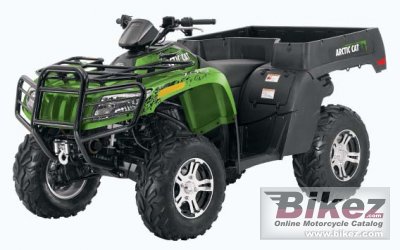

Arctic Cat TBX 700 LTD 20112011 Arctic Cat TBX 700 LTD specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Arctic Cat TBX 700 LTD |
| Year of manufacture | 2011 |
| Type | ATV |
| Price as new | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 695.0 ccm (42.41 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2WD /4 WD + Diff Lock |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Wheels | 12´ Machined Aluminum Wheels |
| Physical measures and capacities | |
| Dry weight | 354.0 kg (780.4 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2489 mm (98.0 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 22.00 litres (5.81 US gallons) |
| Other specifications | |
| Color options | Arctic Green Metallic |
| Starter | Electric |
| Electrical | Alternator Capacity: 25.0 amps |
| Carrying capacity | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 300/ lbs / 136 kg. Cargo Box. Towing Capacity 1,050 lbs / 476.3 kg. |
| Comments | Power Steering, Front and Rear Bumpers, Winch |
