| Arctic Cat's profilation of this bike |
| The machine´s name doesn´t lie. Herculean power melded with clean burning fuel efficiency makes this ATV for anything you got in mind. |
|
General information |
|

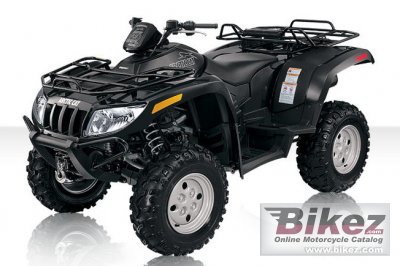

Model
|
Arctic Cat Super Duty Diesel |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 9699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
695.0 ccm (42.41 cubic inches) |
|
Type of engine
|
Diesel |
|
Bore x stroke
|
75.0 x 77.6 mm (3.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
382.0 kg (842.2 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2362 mm (93.0 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Wheelbase
|
1473 mm (58.0 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. High/low range. Diff lock. EBS. I-Twin engine. |
