Arctic Cat MudPro 700i 20122012 Arctic Cat MudPro 700i specifications, pictures, reviews and rating |

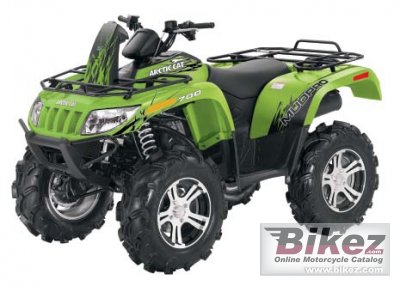

 2012 Arctic Cat MudPro 700i. Picture credits - Arctic Cat. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Arctic Cat MudPro 700i |
| Model year | 2012 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 695.0 ccm (42.41 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | On-the-fly 2wd/4wd W/diff Lock |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 28/9-14 |
| Rear tire | 28/9-14 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Wheels | 28ยด Maxxis Zilla Tires, Aluminum Rims. |
| Physical measures and capacities | |
| Dry weight | 354.0 kg (780.4 pounds) |
| Overall length | 2197 mm (86.5 inches) |
| Ground clearance | 356 mm (14.0 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 21.60 litres (5.71 US gallons) |
| Other specifications | |
| Color options | Arctic Green Metallic |
| Instruments | Analoge/digital |
| Electrical | 25 amps alternator |
| Carrying capacity | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity: 1,050 lbs / 476.3 kg |
| Comments | Snorkel Air Intake. |
