| General information |
|---|

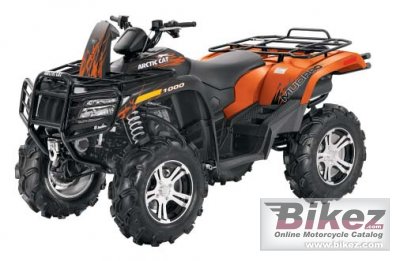

| Model: | Arctic Cat MudPro 1000i LTD |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 951.0 ccm (58.03 cubic inches) |
| Engine type: | V2, four-stroke |
| Bore x stroke: | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Electric Diff Lock |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tyre: | 28/9-14 |
| Rear tyre: | 28/11-14 |
| Front brakes: | Single disc. Hydraulic |
| Rear brakes: | Single disc. Hydraulic |
| Wheels: | 28ยด Maxxis Zilla Tires, Aluminum Rims. |
| Physical measures and capacities |
|---|
| Dry weight: | 386.0 kg (851.0 pounds) |
| Overall height: | 1316 mm (51.8 inches) |
| Overall length: | 2400 mm (94.5 inches) |
| Overall width: | 1207 mm (47.5 inches) |
| Ground clearance: | 356 mm (14.0 inches) |
| Wheelbase: | 1473 mm (58.0 inches) |
| Fuel capacity: | 20.06 litres (5.30 gallons) |
| Other specifications |
|---|
| Color options: | Orange Metallic |
| Starter: | Electric |
| Instruments: | Analogue/digital |
| Carrying capacity: | Front Rack Capacity: 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity: 1,050 lbs / 476.3 kg. |
| Comments: | Power Steering. Snorkle air intake. |
