| Arctic Cat's profilation of this bike |
| The thickest muck and harshest competitors don´t stand a chance against the awe-inspiring power of the all-new MudPro 100. |
| General information |
|---|

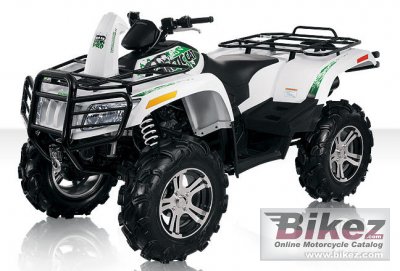

| Model | Arctic Cat MudPro 1000 H2 EFI |
| Year | 2010 |
| Category | ATV |
| Price as new | US$ 12999. MSRP depends on country, taxes, accessories, etc. |
| Rating | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement | 951.0 ccm (58.03 cubic inches) |
| Engine type | V2, four-stroke |
| Bore x stroke | 92.0 x 71.6 mm (3.6 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 28/9-14 |
| Rear tire | 28/9-14 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities |
|---|
| Dry weight | 386.0 kg (851.0 pounds) |
| Overall height | 1316 mm (51.8 inches) |
| Overall length | 2400 mm (94.5 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 356 mm (14.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 20.10 litres (5.31 US gallons) |
| Other specifications |
|---|
| Color options | White metallic |
| Starter | Electric |
| Comments | 2/4WD with reverse. Hi/lo range. Diff lock. Winch. |
