General information |
|
Motorcycle name
|

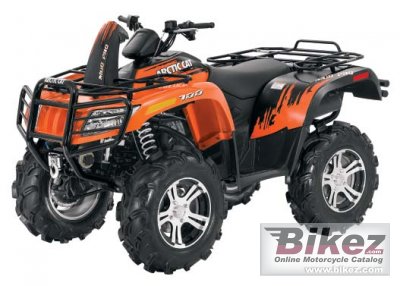

Arctic Cat Mud Pro 700 |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
| Price as new | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
695.0 ccm (42.41 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
28/9-14 |
|
Rear tire
|
28/9-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
353.0 kg (778.2 pounds) |
|
Overall height
|
1316 mm (51.8 inches) |
|
Overall length
|
2197 mm (86.5 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
356 mm (14.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
21.60 litres (5.71 US gallons) |
|
Other specifications |
|
Color options
|
Sublime Green/Black Metallic Paint, Orange Metallic/Black Metallic Paint |
|
Starter
|
Electric |
|
Carrying capacity
|
Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity: 1,050 lbs / 476.3 kg |
|
Comments
|
Front and Rear Bumpers, Winch, Snorkel Air Intake. |
