| Arctic Cat's profilation of this bike |
| The sharp, sport-styled bodywork of the 90 DVX will make any junior rider feel like a high-tech champion. |
| General information |
|---|

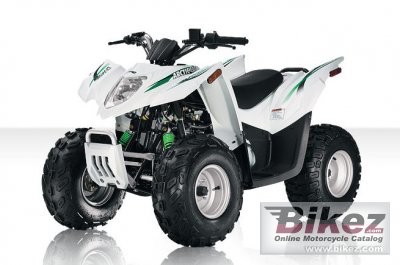

| Model: | Arctic Cat 90 DVX Youth |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 3349. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 90.00 ccm (5.49 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 647.0 x 51.8 mm (25.5 x 2.0 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Single A-Arm |
| Front wheel travel: | 71 mm (2.8 inches) |
| Rear suspension: | Swing Arm |
| Rear wheel travel: | 73 mm (2.9 inches) |
| Front tyre: | 20/7-8 |
| Rear tyre: | 19/8-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 175.1 kg (386.0 pounds) |
| Overall height: | 962 mm (37.9 inches) |
| Overall length: | 1,468 mm (57.8 inches) |
| Overall width: | 876 mm (34.5 inches) |
| Ground clearance: | 184 mm (7.2 inches) |
| Wheelbase: | 975 mm (38.4 inches) |
| Other specifications |
|---|
| Color options: | White |
| Comments: | 2WD with reverse. |
