General information |
Model name
|

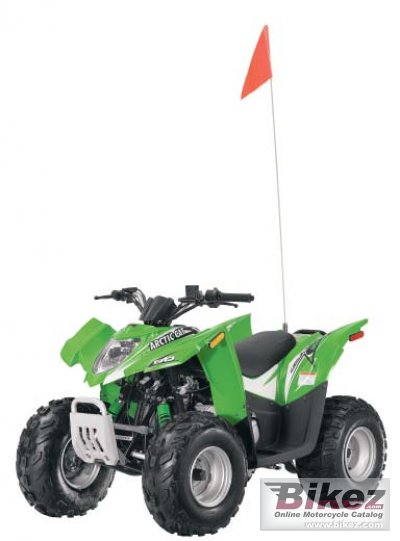

Arctic Cat 90 DVX |
Year model
|
2011 |
Type
|
ATV |
Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
90.0 ccm (5.49 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Bore x stroke
|
47.0 x 51.8 mm (1.9 x 2.0 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
2WD. Automatic CVT with Forward, Neutral and Reverse |
Chassis, suspension, brakes and wheels |
Front suspension
|
Single A-Arm. Independent Front Suspension |
Front wheel travel
|
71 mm (2.8 inches) |
Rear suspension
|
Swing Arm |
Rear wheel travel
|
73 mm (2.9 inches) |
Front tire
|
20/7-8 |
Rear tire
|
19/8-8 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
117.0 kg (257.9 pounds) |
Overall height
|
962 mm (37.9 inches) |
Overall length
|
1468 mm (57.8 inches) |
Overall width
|
876 mm (34.5 inches) |
Ground clearance
|
184 mm (7.2 inches) |
Wheelbase
|
975 mm (38.4 inches) |
Fuel capacity
|
5.70 litres (1.51 US gallons) |
Other specifications |
Color options
|
Lime |
Light
|
Headlight . Taillight. |
