Arctic Cat's profilation of this bike |
Once again an ATV comes along that lays claim to any trail it encounters. The 700 S harnesses the power og a 695 cc engine, delivering the nonstop performance that you´ve come to expect from Arctic Cat. |
General information |
Model
|

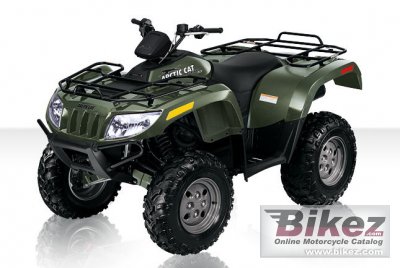

Arctic Cat 700 S |
Model year
|
2010 |
Category
|
ATV |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
695.0 ccm (42.41 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
Valves per cylinder
|
4 |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Double A-Arm |
Front wheel travel
|
254 mm (10.0 inches) |
Rear suspension
|
Double A-Arm |
Rear wheel travel
|
254 mm (10.0 inches) |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Single disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
342.9 kg (756.0 pounds) |
Overall height
|
1219 mm (48.0 inches) |
Overall length
|
2154 mm (84.8 inches) |
Overall width
|
1206 mm (47.5 inches) |
Ground clearance
|
127 mm (5.0 inches) |
Wheelbase
|
1270 mm (50.0 inches) |
Fuel capacity
|
21.57 litres (5.70 US gallons) |
Other specifications |
Color options
|
Green |
Starter
|
Electric |
Comments
|
2/4WD with reverse. High/low range. Diff lock. EBS. |
