General information |
---|

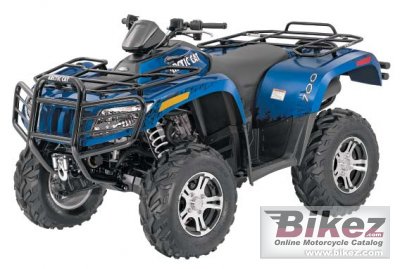

Model | Arctic Cat 700 LTD |
Year | 2011 |
Category | ATV |
Price as new | US$ 10339. MSRP depends on country, taxes, accessories, etc. |
Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
---|
Displacement | 695.0 ccm (42.41 cubic inches) |
Engine type | Single cylinder, four-stroke |
Bore x stroke | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
Fuel system | Injection |
Fuel control | Single Overhead Cams (SOHC) |
Cooling system | Liquid |
Gearbox | Automatic |
Transmission type | Belt (final drive) |
Driveline | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock |
Chassis, suspension, brakes and wheels |
---|
Front suspension | Double A-Arm |
Front wheel travel | 254 mm (10.0 inches) |
Rear suspension | Double A-Arm |
Rear wheel travel | 254 mm (10.0 inches) |
Front tire | 25/8-12 |
Rear tire | 25/10-12 |
Front brakes | Single disc. Hydraulic |
Rear brakes | Single disc. Hydraulic |
Wheels | 12ยด Machined Aluminum Wheels |
Physical measures and capacities |
---|
Dry weight | 318.0 kg (701.1 pounds) |
Overall height | 1219 mm (48.0 inches) |
Overall length | 2197 mm (86.5 inches) |
Overall width | 1206 mm (47.5 inches) |
Ground clearance | 279 mm (11.0 inches) |
Wheelbase | 1334 mm (52.5 inches) |
Other specifications |
---|
Color options | Tungsten Metallic Paint, Viper Blue Metallic Paint |
Starter | Electric |
Carrying capacity | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg |
Comments | Power Steering, Aluminum Wheels, Front and Rear Bumpers, Winch. Electric 2WD/4WD and Front Differential Lock. |
