| Arctic Cat's profilation of this bike |
| Is it possible to make something more awesome? Of course it is. We took the 700 H1 EFI, goosed it up with some sporty features an reinvented as the 700 H1 EFI LE. |
|
General information |
|
Motorcycle name
|

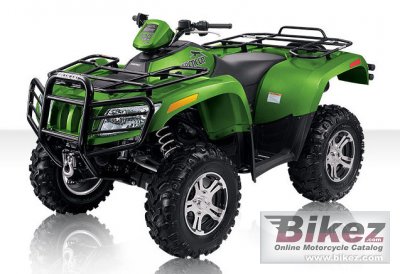

Arctic Cat 700 H1 EFI LE |
|
Year
|
2010 |
|
Category
|
ATV |
| Price as new | US$ 9399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
695.0 ccm (42.41 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Incjetion (EFI) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
342.9 kg (756.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2197 mm (86.5 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Metallic green |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. EBS. High/low range. Diff lock. |
