| Arctic Cat's profilation of this bike |
| Need an ATV that´s as hard cor as you are? The 700 H1 EFI is equipped with a race-bred, 695 cc engine to answer the call. |
|
General information |
|
Model name
|

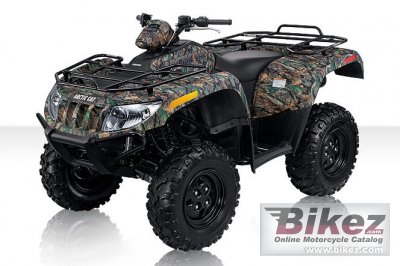

Arctic Cat 700 H1 EFI |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 8499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
695.0 ccm (42.41 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
316.2 kg (697.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2154 mm (84.8 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
229 mm (9.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Red, Camo |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. High/low range. Diff lock. EBS. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Arctic Cat 700 H1 EFI discussion group or the general Arctic Cat discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
Compare with another motorcycle |
|
|
|
|
|
Rating sample for this Arctic Cat bike
|
Engine performance for the 2010 Arctic Cat 700 H1 EFI:
 (83.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
