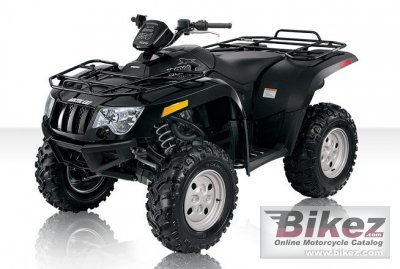

| Arctic Cat's profilation of this bike |
| There´s a little bit of showmanship in this bike. And maybe a touch of braggart. |
| General information |
|---|
| Model: | Arctic Cat 650 H1 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 7199. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 641.00 ccm (39.11 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 98.0 x 85.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tyre: | 25/8-12 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Single disc. Hydraulic |
| Rear brakes: | Single disc. Hydraulic |
| Physical measures and capacities |
|---|
| Dry weight: | 313.9 kg (692.0 pounds) |
| Overall height: | 1,219 mm (48.0 inches) |
| Overall length: | 2,154 mm (84.8 inches) |
| Overall width: | 1,206 mm (47.5 inches) |
| Ground clearance: | 129 mm (5.1 inches) |
| Wheelbase: | 1,270 mm (50.0 inches) |
| Fuel capacity: | 21.57 litres (5.70 gallons) |
| Other specifications |
|---|
| Color options: | Balck |
| Starter: | Electric |
| Comments: | 2/4WD with reverse. EBS. High/low range. Diff lock. |
