| Arctic Cat's profilation of this bike |
| When the trail calls, answer it with a machine that delivers on every level. |
|
General information |
|
Motorcycle name
|

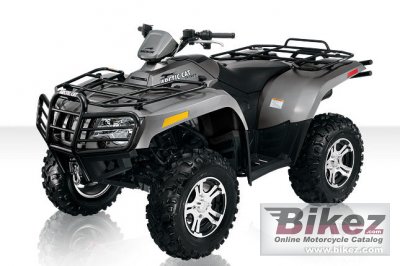

Arctic Cat 550 S LTD |
|
Model year
|
2010 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
545.0 ccm (33.26 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
92.0 x 82.0 mm (3.6 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
313.9 kg (692.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2154 mm (84.8 inches) |
|
Overall width
|
1206 mm (47.5 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Tungsten metallic |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. EBS. High/low range. Diff lock. |
