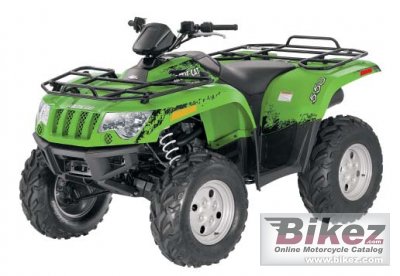

Arctic Cat 550 S 20112011 Arctic Cat 550 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Arctic Cat 550 S |
| Year model | 2011 |
| Type | ATV |
| Price as new | US$ 8599. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 545.0 ccm (33.26 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 92.0 x 82.0 mm (3.6 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2 WD/4 WD + Diff Lock |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Dry weight | 313.9 kg (692.0 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2154 mm (84.8 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 21.57 litres (5.70 US gallons) |
| Other specifications | |
| Color options | Lime |
| Starter | Electric |
| Carrying capacity | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg |
| Comments | Power Steering |
