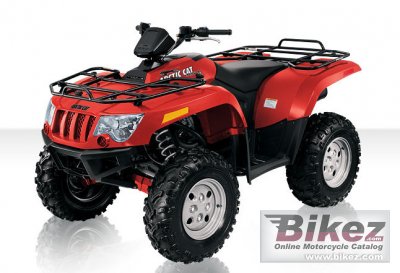

Arctic Cat 550 S 20102010 Arctic Cat 550 S specifications, pictures, reviews and rating |
| Arctic Cat's profilation of this bike |
| Find your place in the great outdoors with an ATV thta´s perfectly suited to your trail riding style. |
| General information | |
|---|---|
| Motorcycle name | Arctic Cat 550 S |
| Year model | 2010 |
| Type | ATV |
| Price as new | US$ 7199. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 545.0 ccm (33.26 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 92.0 x 82.0 mm (3.6 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Dry weight | 313.9 kg (692.0 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2154 mm (84.8 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 21.57 litres (5.70 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Comments | 2/4WD with reverse. EBS. High/low range. Diff lock. |
| Update specs | Report missing specs or required updates. |
