Arctic Cat 550 LTD 20112011 Arctic Cat 550 LTD specifications, pictures, reviews and rating |

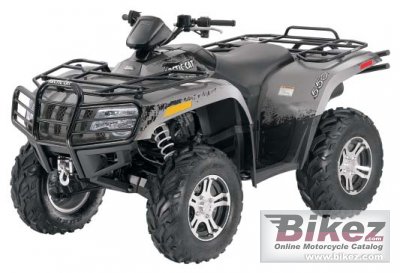

 2011 Arctic Cat 550 LTD. Picture credits - Arctic Cat. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Arctic Cat 550 LTD |
| Year of manufacture | 2011 |
| Type | ATV |
| Price as new | US$ 9499. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 545.0 ccm (33.26 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 92.0 x 82.0 mm (3.6 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Wheels | 12ยด Machined Aluminum Wheels |
| Physical measures and capacities | |
| Dry weight | 318.0 kg (701.1 pounds) |
| Overall height | 1219 mm (48.0 inches) |
| Overall length | 2197 mm (86.5 inches) |
| Overall width | 1206 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1334 mm (52.5 inches) |
| Other specifications | |
| Color options | Tungsten Metallic Paint |
| Starter | Electric |
| Electrical | Alternator Capacity: 25.0 amps |
| Carrying capacity | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg |
| Comments | Power Steering, Aluminum Wheels, Front and Rear Bumpers, Winch. |
