| Arctic Cat's profilation of this bike |
| We don´t skimp on the extras. And the 550 H1 EFI LE is loaded with them. It starts with a 4-stroke, 545cc engine as the center of this workhorse. |
|
General information |
|
Model name
|

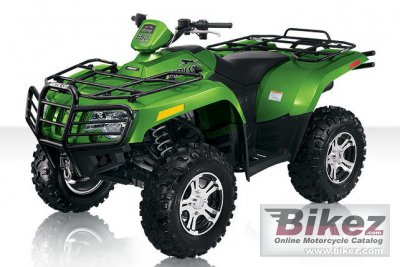

Arctic Cat 550 H1 EFI LE |
|
Year of manufacture
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 8499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
545.0 ccm (33.26 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
92.0 x 82.0 mm (3.6 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
325.2 kg (717.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2197 mm (86.5 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
21.57 litres (5.70 US gallons) |
|
Other specifications |
|
Color options
|
Green metallic |
|
Starter
|
Electric |
|
Comments
|
2/4WD. EBS. High/low range with reverse. Diff lock. |
