General information |
|
Motorcycle name
|

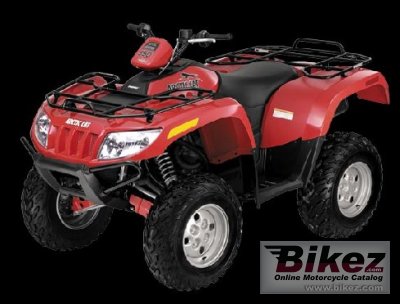

Arctic Cat 550 H1 EFI LE |
|
Year
|
2009 |
|
Category
|
ATV |
| Price as new | US$ 8299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
545.0 ccm (33.26 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
98.0 x 82.0 mm (3.9 x 3.2 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-arm |
|
Front wheel travel
|
254 mm (10.0 inches) |
|
Rear suspension
|
Double A-arm |
|
Rear wheel travel
|
254 mm (10.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
326.1 kg (719.0 pounds) |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall width
|
1207 mm (47.5 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
24.60 litres (6.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
4x4. Automatic CVT with EBS, Hi/Lo range and reverse |
