| General information |
|---|

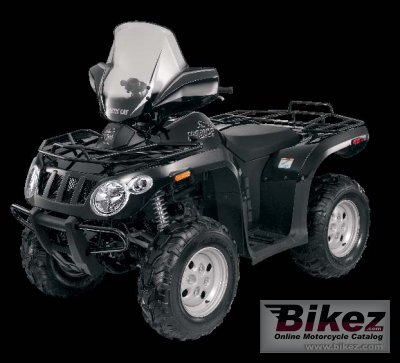

| Model: | Arctic Cat 366 SE |
| Year: | 2011 |
| Category: | ATV |
| Price as new: | US$ 6249. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 366.0 ccm (22.33 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 89.0 x 71.2 mm (3.5 x 2.8 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Oil & air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Double A-Arm. Fully Independent Suspension. |
| Front wheel travel: | 178 mm (7.0 inches) |
| Rear suspension: | Double A-Arm |
| Rear wheel travel: | 178 mm (7.0 inches) |
| Front tyre: | 24/8-12 |
| Rear tyre: | 24/10-12 |
| Front brakes: | Single disc. Hydraulic |
| Rear brakes: | Single disc. Hydraulic |
| Physical measures and capacities |
|---|
| Dry weight: | 258.5 kg (569.9 pounds) |
| Overall height: | 1184 mm (46.6 inches) |
| Overall length: | 2057 mm (81.0 inches) |
| Overall width: | 1180 mm (46.5 inches) |
| Ground clearance: | 254 mm (10.0 inches) |
| Wheelbase: | 1270 mm (50.0 inches) |
| Fuel capacity: | 16.30 litres (4.31 gallons) |
| Other specifications |
|---|
| Color options: | Black Metallic Paint |
| Starter: | Electric |
| Carrying capacity: | Front Rack Capacity 75 lbs / 34 kg. Rear Rack Capacity 150 lbs / 68.1 kg. Towing Capacity 1,050 lbs / 476.3 kg |
| Comments: | Windshield |
