| Arctic Cat's profilation of this bike |
| Everything about this ATV screams ´trailvoyager´. The the reins with the 366 SE and those patches will smooth out before you thank to the fully independent suspension. |
|
General information |
|
Model name
|

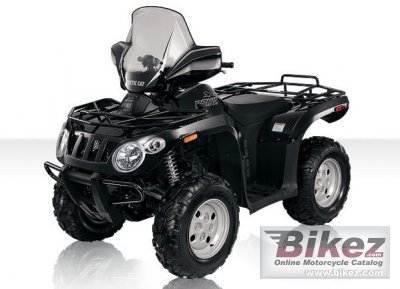

Arctic Cat 366 SE |
|
Year
|
2010 |
|
Category
|
ATV |
| Price as new | US$ 6899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
366.0 ccm (22.33 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
89.0 x 71.2 mm (3.5 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
178 mm (7.0 inches) |
|
Rear suspension
|
Double A-Arm |
|
Rear wheel travel
|
178 mm (7.0 inches) |
|
Front tire
|
24/8-12 |
|
Rear tire
|
24/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
258.5 kg (569.9 pounds) |
|
Overall height
|
1184 mm (46.6 inches) |
|
Overall length
|
2057 mm (81.0 inches) |
|
Overall width
|
1180 mm (46.5 inches) |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
16.30 litres (4.31 US gallons) |
|
Other specifications |
|
Color options
|
Metallic black |
|
Starter
|
Electric |
|
Comments
|
2/4WD with reverse. EBS. High/low range. |
