| Arctic Cat's profilation of this bike |
| Want the zip of a Sport Quad with the distinct removable fender styling of an Arctic Cat DVX at a price that leaves you smiling all the way to the bank¿ The Arctic Cat 300 DVX delivers all that and so much more. |
| General information |
|---|

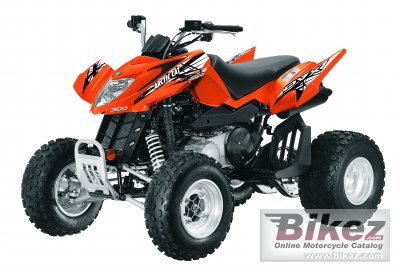

| Model: | Arctic Cat 300 DVX |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 270.0 ccm (16.48 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 72.7 x 65.2 mm (2.9 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | Automatic CVT with Forward, Neutral and Reverse. 2WD. |
| Exhaust system: | Alternator Capacity: 12.5 amps |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm. Adjustable Shocks |
| Front wheel travel: | 155 mm (6.1 inches) |
| Rear suspension: | Double A-Arm. Adjustable Shocks |
| Rear wheel travel: | 165 mm (6.5 inches) |
| Front tyre: | 21/7-10 |
| Rear tyre: | 20/11-9 |
| Front brakes: | Single disc. Hydraulic |
| Rear brakes: | Single disc. Hydraulic |
| Wheels: | Aluminium rims |
| Seat: | 2 person seat |
| Physical measures and capacities |
|---|
| Dry weight: | 192.8 kg (425.1 pounds) |
| Overall height: | 1135 mm (44.7 inches) |
| Overall length: | 1720 mm (67.7 inches) |
| Overall width: | 1135 mm (44.7 inches) |
| Ground clearance: | 267 mm (10.5 inches) |
| Wheelbase: | 1179 mm (46.4 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Other specifications |
|---|
| Color options: | White/lime green, orange |
| Starter: | Electric |
| Light: | Headlight and Taillight |
| Further information |
|---|
